ハイライト
R32 refrigerant charging system
,air conditioner production charging station
,CM8600 refrigerant charging equipment
-
条件新しい
-
適用される産業製造工場
-
体重 (kg)300
-
ショールームの場所なし
-
動画の出荷検査提供
-
機械試験報告利用不可
-
基本部品の保証1年
-
コアコンポーネントモーター、ポンプ
-
タイプコンプレッサー
-
保証1年
-
アフターサービス提供海外で機械の修理ができる技術者
-
決議0.1g
-
電圧380V/50Hz
-
冷媒R22/R410A/R407C/R134A
-
モデル番号CM8600 R32 冷却剤充電システム
-
精度±0.5%
-
真空度5Pa~10Pa
-
充電速度60~260g/s
-
適用するエアコン,水分器,冷蔵庫,冷蔵庫
-
ポート上海 寧波 天津 青島
-
起源の場所江苏,中国
-
ブランド名CM
-
証明CE, ATEX
-
モデル番号CM8600
-
最小注文数量1個
-
価格$20,400.00/units 1-2 units
-
パッケージの詳細CM8600 冷却剤充填機のための木製ケース,パレット
-
供給の能力月あたり50ユニット
CM8600 R32 Refrigerant Charging System for Air Conditioner Production
Single System Auto Freon Gas Filling System
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Description
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. and can be customized according to your special requirements.
Key Features
- Adopts CNC technology for accurate data processing and easy operation
- Charging/filling liquid gas (R134a, R22, R407C, R410A etc. Custom options available for R600a, R290, R32)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors with resolution of 1~0.1g
- Wonfulay Pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with rate of 60g~260g
- Automatic prompts when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum (5~10Pa)
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move and operate

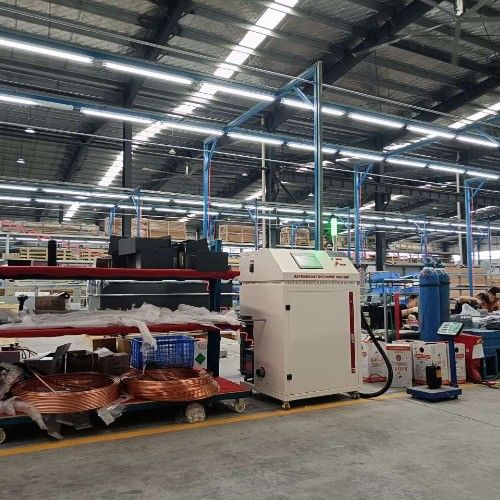

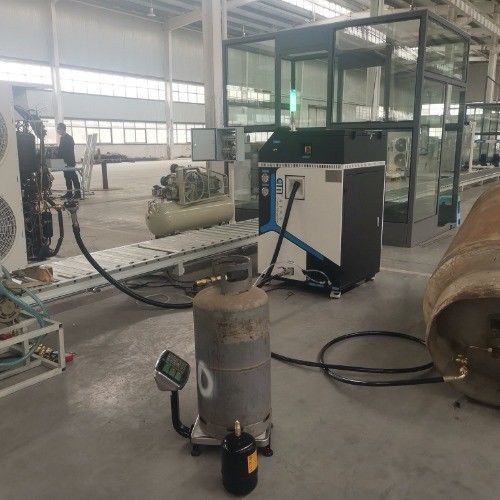

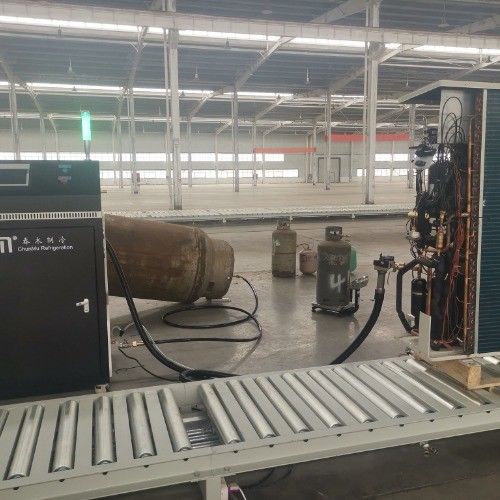

Product Images
