ハイライト
refrigerator production line filling station
,refrigerant charging station with warranty
,Chunmu refrigerant filling equipment
-
状態新しい
-
適用産業製造工場
-
体重（kg）300
-
ショールームの場所なし
-
ビデオの発信検査提供された
-
機械テストレポート利用不可
-
コアコンポーネントの保証1年
-
コアコンポーネントモーター、ポンプ
-
タイプコンプレッサー
-
保証1年
-
提供されるアフターセールスサービス海外で機械にサービスを提供できるエンジニア
-
解決0.1g
-
電圧380V/50Hz
-
冷媒R22/R410A/R407C/R134A
-
モデル番号CM8600 R32冷媒充電システム
-
精度±0.5％
-
真空度5pa〜10pa
-
充電速度60〜260g/s
-
応用エアコン、ウォーターディスペンサー、冷凍庫、冷蔵庫
-
ポート上海ニンボティアンジンチンダオ
-
起源の場所江蘇、中国
-
ブランド名CM
-
証明CE, ATEX
-
モデル番号CM8600
-
最小注文数量1ユニット
-
価格$20,400.00/units 1-2 units
-
パッケージの詳細木製のケース、CM8600冷媒充填充電機のパレット
-
供給の能力月額50ユニット/単位
CM8600 R32 Refrigerant Charging System for Industrial Manufacturing
Chunmu Refrigerator Production Line Refrigerant Filling Station
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video Outgoing-Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant Compatibility | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Overview
The CM8600 Dual System Refrigerant Charging Machine is specially designed for high-speed refrigerant charging in refrigerator assembly lines. This professional-grade equipment features exceptional charging speed, high accuracy, and multiple functions for industrial applications.
Key Specifications: Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific production line requirements.
Key Features
- CNC technology enables precise data processing with accurate and easy operation
- Charging/filling capability for liquid gases including R134a, R22, R407C, R410A (customizable for R600a, R290, R32)
- Siemens PLC with colorful touch screen control system
- High-accuracy flow sensors provide resolution of 1~0.1g
- Wonfulay pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging capacity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum of 5~10Pa
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement between workstations
Product Images

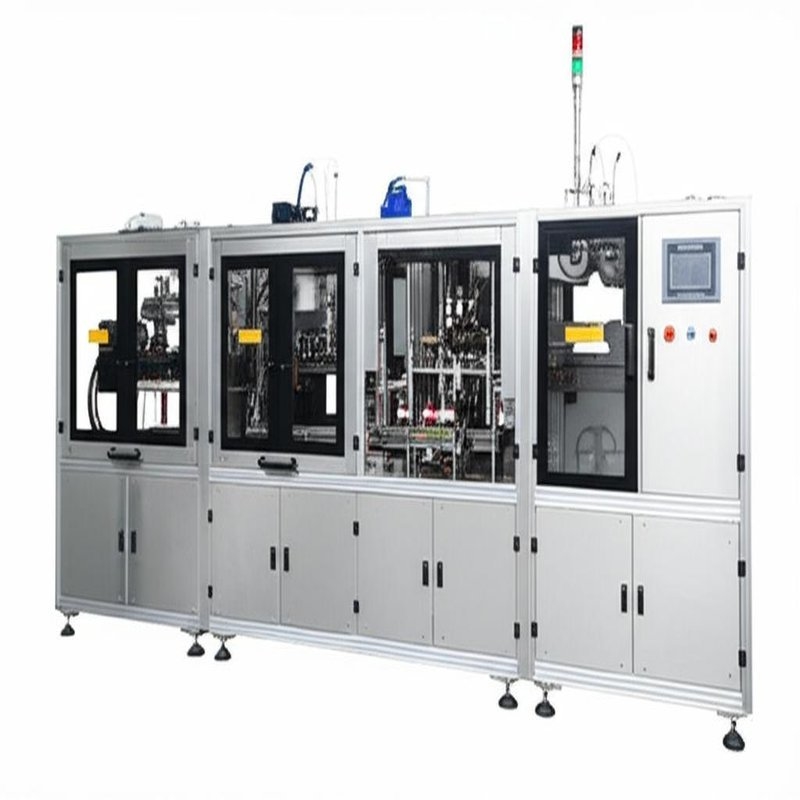

Front View
Control Panel
Side View
Components
Filling Interface
Internal Components
Pneumatic System
Vacuum Pump
